EV BATTERY PACKS
DESIGNED, ENGINEERED & MANUFACTURED BY JAYEM AUTOMOTIVES
Jayem Automotives designs and manufactures automotive-grade battery pack systems for electric and hybrid mobility applications. Built on deep experience in vehicle engineering, electrification, and manufacturing, Jayem’s battery systems are developed to deliver safety, reliability, performance, and production readiness.
Battery pack programs are executed end-to-end—from architecture definition and design to manufacturing, testing, and certification—enabling customers to move faster from concept to market with reduced development risk.
Our Battery Packs
Jayem offers multiple battery pack variants to suit different voltage classes, energy needs, and vehicle platforms. All packs are designed, engineered and manufactured by Jayem in line with ARAI AIS 0038 & AIS 004.
Drag >>>
End-to-End Battery System Capability
Jayem provides complete battery system development, from concept to commercialization.
Battery Pack Design & Engineering
Battery pack architecture is designed to meet electrical, mechanical, thermal, and safety requirements. System design focuses on packaging efficiency, structural integrity, thermal management, and serviceability ensuring seamless integration with the vehicle platform.
Battery Management System Integration
Battery systems are integrated with automotive-grade BMS architectures, supporting cell monitoring, thermal control, safety logic, and vehicle communication. Integration is carried out to ensure stable performance across operating conditions and long service life.
Manufacturing & Assembly
Battery packs are manufactured through controlled, scalable production processes, supporting prototype builds, pilot production, and series manufacturing. Assembly processes are defined to ensure consistency, traceability, and quality across volumes.
Testing, Validation & Certification
Battery systems undergo functional, safety, and performance validation to meet automotive standards. Testing supports homologation readiness, durability validation, and production release. Automotive battery packs are developed to meet AIS and ARAI certification requirements.
Scalable & Customisable Platforms
Jayem battery systems are developed using a modular platform approach that enables efficient creation of multiple voltage and energy configurations. This approach supports faster customisation, shorter development timelines, reuse of validated platforms across programs, and a smooth transition from pilot builds to production. Depending on program scope and complexity, custom battery pack development is typically completed within six to nine months.

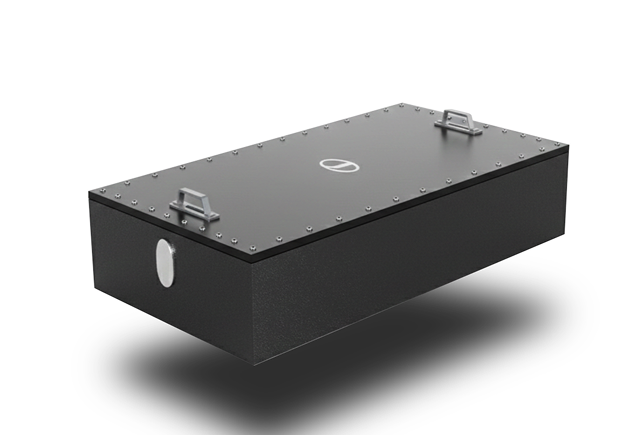

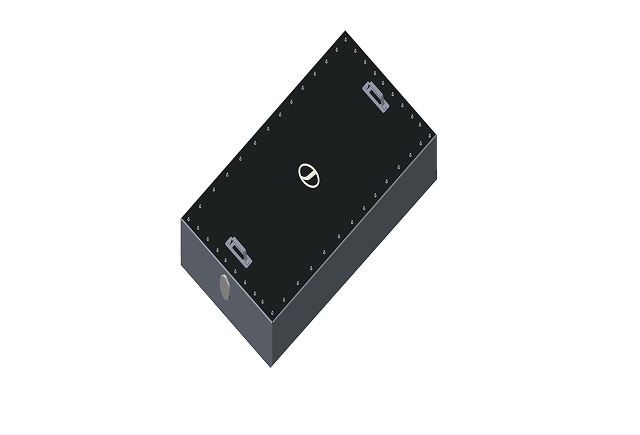

Battery Pack 1 – Compact Range LV Pack
Status: Homologation Ready
| Name | Value |
|---|---|
| Nominal Voltage | 51.2 V |
| Voltage Range | 44 – 58 V |
| Energy | 10.65 kWh |
| Continuous Discharge | 150 A |
| Peak Discharge (≤5s) | 300 A |
| Continuous Charge | 100 A |
| Peak Charge (≤10s) | 150 A |
| Dry Weight | 96 kg |
| Dimensions | 745 × 500 × 182 mm |
| Cooling | Air Cooled |
| Operating Temp (Discharge) | –5°C to 55°C |
| Operating Temp (Charge) | 0°C to 55°C |
| Certification | AIS 156 & AIS 004 Part B |
Typical Use:
Low-voltage EVs such as 3 Wheelers, Golf carts, Forklifts, etc.

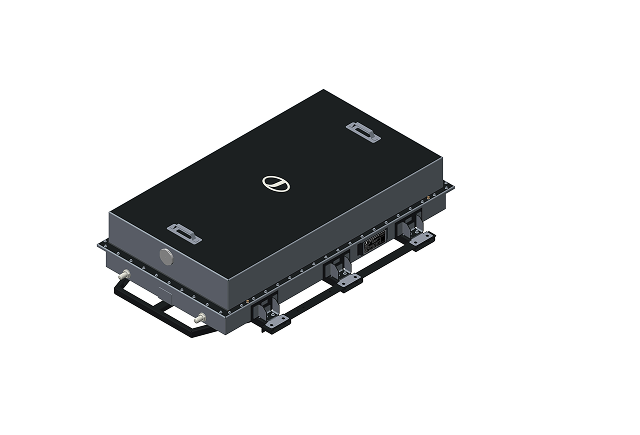

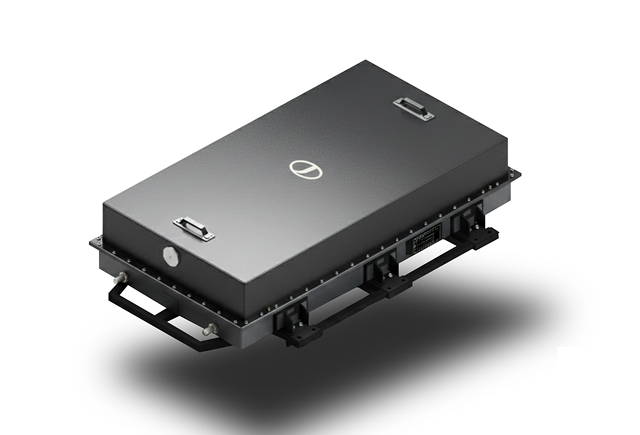

Battery Pack 2 – Mid Range HV Pack
Status: Homologation In Progress
| Name | Value |
|---|---|
| Nominal Voltage | 304 V |
| Voltage Range | 266 – 346 V |
| Energy | 32 kWh |
| Continuous Discharge | 105 A |
| Peak Discharge | 210 A (30 sec) |
| Continuous Charge | 95 A |
| Peak Charge | 105 A |
| Dry Weight | 313 kg |
| Dimensions | 1308 × 918 × 330 mm |
| Cooling | Liquid Cooled |
| Certification | AIS 38 & AIS 004 Part B (in progress) |
Typical Use:
Mid-range EVs, utility vehicles, special mobility platforms.

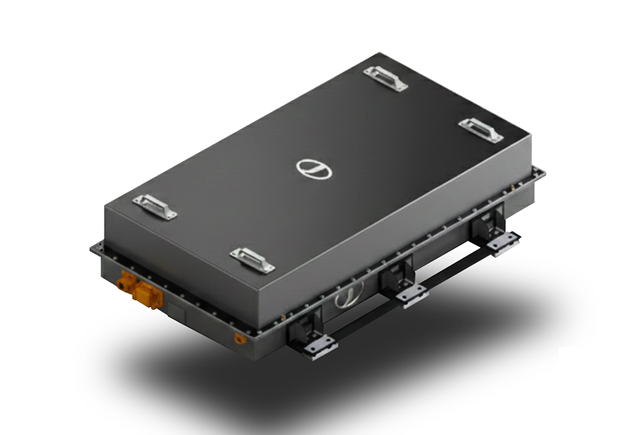

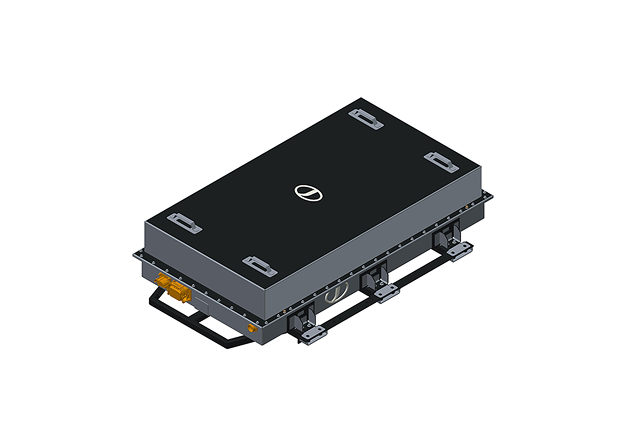

Battey Pack 3 – Standard Range HV Pack
Status: Homologation Ready
| Name | Value |
|---|---|
| Nominal Voltage | 345 V |
| Voltage Range | 302 – 390 V |
| Energy | 43.2 kWh |
| Continuous Discharge | 125 A |
| Peak Discharge | 250 A (30 sec) |
| Continuous Charge | 88 A |
| Peak Charge | 125 A |
| Dry Weight | 364 kg |
| Dimensions | 1539 × 934 × 301 mm |
| Cooling | Liquid Cooled |
| Certification | AIS 38 & AIS 004 Part B |
Typical Use:
Small commercial Vehicles

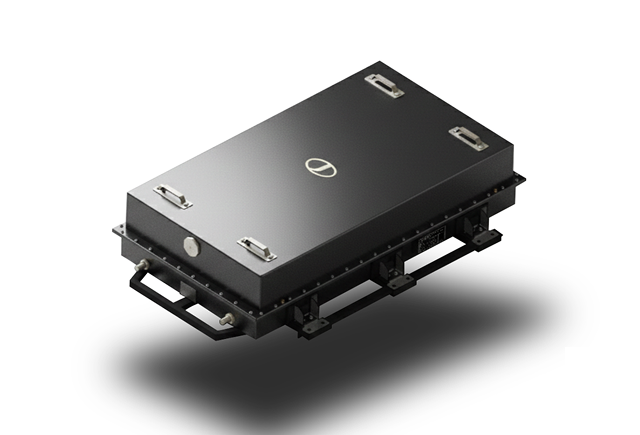

Battery Pack 4 – Extended Range HV Pack
Status: Homologation In Progress
| Name | Value |
|---|---|
| Nominal Voltage | 307 V |
| Voltage Range | 268 – 350 V |
| Energy | 50 kWh |
| Continuous Discharge | 163 A |
| Peak Discharge | 330 A (30 sec) |
| Continuous Charge | 98 A |
| Peak Charge | 163 A |
| Dry Weight | 441 kg |
| Dimensions | 1478 × 918 × 350 mm |
| Cooling | Liquid Cooled |
| Certification | AIS 38 & AIS 004 Part B (in progress) |
Typical Use:
Long-range EVs, heavier commercial and specialty vehicles.
